In industrial fluid handling systems, especially across oil and gas and heavy industrial applications in Canada, visibility into process conditions is critical. Whether during commissioning, routine operation, or troubleshooting, operators need confidence that systems are performing as expected.
However, many skid-mounted systems rely heavily on instrumentation alone, leaving a gap when it comes to quick, visual confirmation of flow conditions.
The Challenge: Limited Visibility in Complex Skid Systems
A global systems integrator was tasked with delivering a range of modular process skids for applications including washdown systems, solvent distribution, lubrication, and coolant handling. These systems required:
- High reliability fluid handling
- Strong process integrity
- Clear verification of flow conditions during operation
Across multiple installations, several challenges became consistent:
- Limited visual confirmation due to opaque piping systems
- Increased maintenance calls when operators could not quickly verify flow
- Commissioning delays caused by reliance on instrumentation such as flowmeters and pressure readings
- Requests from end users for improved operational confidence without adding complex sensors
In many cases, operators were forced to interpret system performance indirectly, which introduced delays and uncertainty—particularly during startup and transient operating conditions.
The Solution: Sight Flow Indicators for Immediate Process Visibility
To address these challenges, the integrator standardized the use of Jacoby-Tarbox sight flow indicators from Clark Reliance across key locations on their skid packages.
These devices provided a simple yet highly effective solution:
- Direct visual confirmation of fluid movement
- Rugged construction suitable for industrial environments
- High-clarity, chemical-resistant viewing windows
- Compatibility with modular skid designs (flanged and threaded connections)
- Minimal maintenance requirements with replaceable components
By integrating sight flow indicators, the systems provided operators with immediate feedback on process conditions without relying solely on instrumentation.
Implementation: Strategic Integration for Maximum Impact

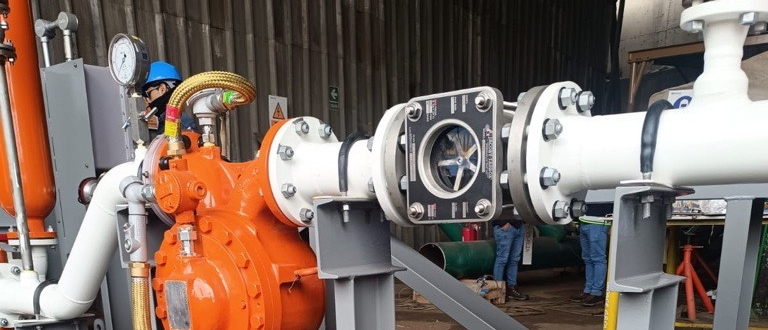

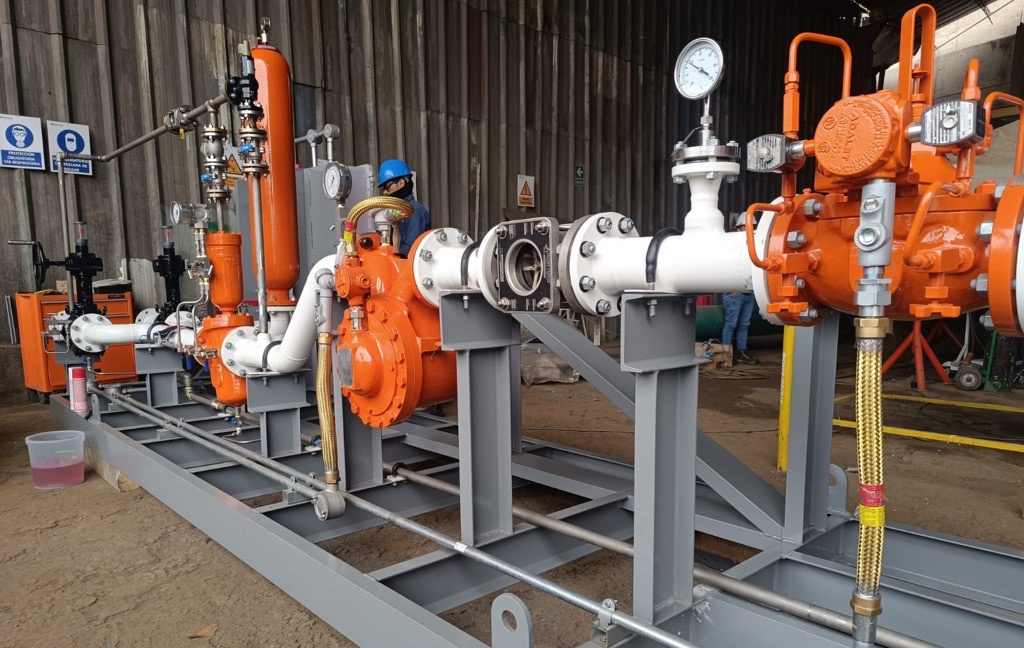

Sight flow indicators were installed in critical areas of the skid systems, including:
- Pump suction and discharge lines
- Recirculation loops
- Inlet points to filtration systems
Placement and orientation were carefully considered to ensure optimal performance, including:
- Maintaining laminar flow across viewing windows
- Preventing air entrapment during startup
- Providing clear visual indicators such as fluid movement, turbulence, and bubble formation
Operators were trained to use these indicators during both startup procedures and troubleshooting scenarios, complementing existing instrumentation.
Results: Faster Decisions, Reduced Downtime, and Improved Confidence
The addition of sight flow indicators delivered immediate and measurable benefits:
- Faster startup verification — reducing confirmation time from minutes to seconds
- Improved troubleshooting — enabling rapid identification of blockages, vapor lock, or incorrect valve positioning
- Reduced downtime — minimizing unnecessary service calls
- Increased operator confidence — providing clear, visual confirmation of system performance
Rather than replacing instrumentation, sight flow indicators enhanced it—providing a simple, reliable layer of verification that improved overall system performance.
Why Visual Verification Still Matters in Modern Systems
While digital instrumentation continues to evolve, there remains a critical need for direct, visual confirmation in industrial systems. Sight flow indicators offer a low-cost, low-maintenance solution that complements advanced controls and improves operational awareness.
For engineers and operators working in oil and gas, manufacturing, and process industries, this added visibility can significantly reduce risk and improve efficiency.
Westech Industrial: Supporting Your Process from Design to Operation
As a Canadian distributor of Clark Reliance’s Jacoby-Tarbox product line, Westech Industrial provides application expertise, product selection, and ongoing support for fluid handling and process visibility solutions.
Our team works with engineers, OEMs, and operators across Canada to:
- Identify optimal installation points for sight flow indicators
- Ensure compatibility with process conditions and materials
- Support integration into new builds and retrofit applications
- Provide ongoing service and technical support
With a strong service team and deep experience in industrial applications, Westech helps ensure your systems perform reliably—from commissioning through long-term operation.
Final Thoughts
In complex industrial systems, the ability to quickly confirm process conditions can make the difference between efficient operation and costly downtime.
Sight flow indicators may seem simple—but when applied correctly, they provide a powerful tool for improving visibility, reliability, and operator confidence. For more information please call us at 1-800-912-9262 or email at [email protected] or visit our website at https://westech-ind.com.
