Why Restricted Instrument Piping Deserves a Place in Your Boiler Inspection Routine
A boiler water-level instrument can be functioning exactly as designed and still provide information that does not accurately reflect conditions inside the boiler.
That may sound contradictory, but the reason can be surprisingly straightforward: the problem is not always the level instrument itself. It can be the piping and valves connecting that instrument to the boiler.
For operators and maintenance teams, this is an important distinction. Replacing or recalibrating an instrument will not solve a problem caused by restricted communication between the boiler drum and the device monitoring it. Understanding the entire level-indication path—not simply the instrument at the end of it—can help teams identify problems earlier and investigate questionable readings more effectively.
The Level Instrument Is Only Part of the System
Boiler drum level instrumentation relies on the steam and water connections between the boiler and the external indicating equipment.
Clark-Reliance has specifically identified restrictions or contamination in the piping connecting gage glasses, water columns, low-water devices and remote level indicators as a potential cause of false level indication or a trapped level in an externally mounted instrument. Sediment can accumulate in the water-side piping or isolation valves as a result of particulate in the boiler water or material generated through erosion over time.
In other words, an instrument does not necessarily have to “fail” for the reading to become unreliable.
If the water in an externally mounted level instrument cannot communicate freely with the boiler drum, the indication may respond slowly—or, in a sufficiently restricted condition, may not represent changing drum conditions properly. That is why troubleshooting drum-level problems should consider the instrument, its valves and the connecting piping as a complete system rather than separate components.
A Plausible Reading Can Be More Difficult to Recognize Than an Obvious Failure
An instrument that has completely failed usually gives maintenance personnel a clear reason to investigate.
A reading that looks believable can be more difficult.
Clark-Reliance notes that a significant restriction can produce a false indication or potentially trap a level in an externally mounted instrument. One practical indicator maintenance teams are advised to watch for is how promptly the indicated water level returns after a blowdown. An unusual delay or change in its normal response is a reason to investigate the internal condition of the piping and valves rather than simply assuming the indication is correct.
This is one reason routine observation remains so important. Maintenance is not only about whether an instrument is leaking, damaged or visibly dirty. How it behaves can also provide useful information.
A change in response time, disagreement with another level indication technology or an indication that does not respond as expected should be investigated rather than accepted simply because the display itself appears normal.
Why Comparing Independent Level Indicators Matters
Modern boiler installations often provide operators with more than one source of level information.
The Clark-Reliance technical paper supplied with this article explains that gage glasses are frequently used to confirm the actual drum water level and compare it with other instruments, particularly during startup. It also describes the importance of independent remote level information for operators located away from the boiler drum.
There is an important principle behind that redundancy: agreement builds confidence; disagreement provides information.
Clark-Reliance’s operational guidance recommends frequently comparing independent level-indicating instruments. If two readings begin to deviate, operators should investigate the cause and establish which indication accurately represents the boiler water level.
That does not automatically mean one electronic device needs recalibration. A discrepancy can have several possible causes, including restricted valves or sensing lines, sediment accumulation or an instrument-related issue. Clark-Reliance specifically identifies sludge buildup in sensing lines and restricted valves among the reasons multiple level indications can disagree.
The useful maintenance question therefore becomes less about “Which instrument is wrong?” and more about “Why are these two independent measurements no longer agreeing?”
That change in thinking can lead to a more complete investigation.
Connecting Piping Is Part of Reliable Level Measurement
The physical arrangement of boiler level-indication piping matters as well.
Clark-Reliance’s technical guidance notes that boiler code provisions address the connections serving water gage glasses and remote indicators, including connection sizing, accessibility for internal inspection and cleaning, piping arrangements intended to avoid problematic pockets or traps, and appropriate valve arrangements.
These details can be easy to overlook because the visible instrument naturally receives most of the attention.
During a repair, replacement or modification, however, looking only at the instrument can miss part of the problem. An older installation may have accumulated sediment; valve internals may need attention; previous piping modifications may deserve review; or the arrangement may simply need to be examined as part of a broader inspection.
The goal is not to assume that every older installation has a problem. It is to make sure the supporting piping is included when the system is evaluated.
Water Quality and Maintenance Are Connected
The condition of boiler water also influences maintenance needs.
In its guidance for magnetic level gages on power boiler applications, Clark-Reliance recommends periodic float inspection to remove debris that may collect on the float, along with periodic blowdown of the sensing lines. The manufacturer also notes that boiler-water quality should help guide inspection frequency, with well-treated applications generally requiring less maintenance.
The broader lesson applies beyond a single type of level indicator: maintenance intervals should reflect the actual operating environment rather than simply becoming a calendar exercise.
A facility experiencing higher sediment loading, changes in water treatment, repeated instrument-response issues or contamination should not necessarily assume that a maintenance interval established under different conditions remains appropriate. Manufacturer recommendations, site procedures and actual equipment condition should all be considered when establishing maintenance practices.
What Should Teams Look for During a Boiler-Level Walkdown?

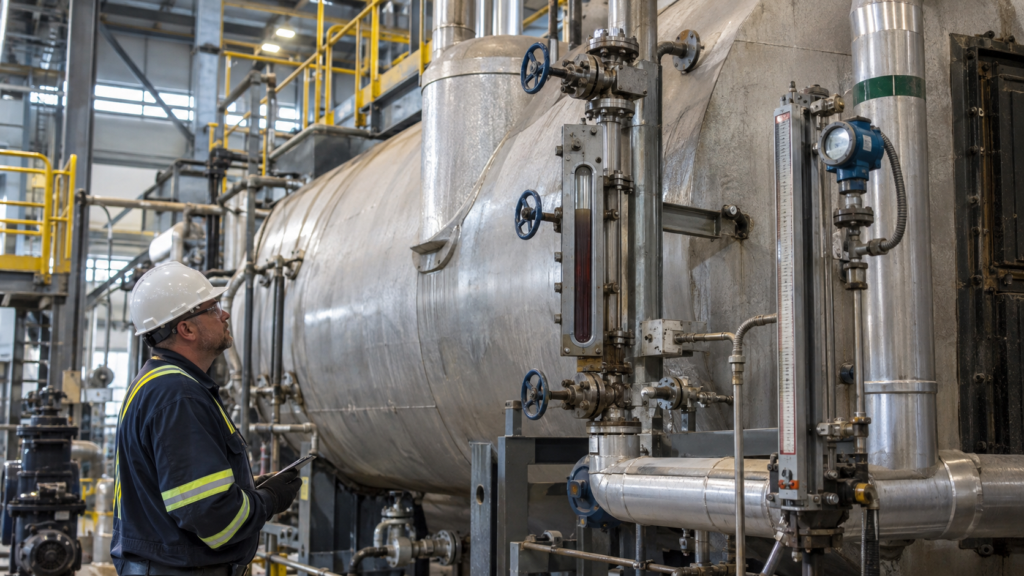

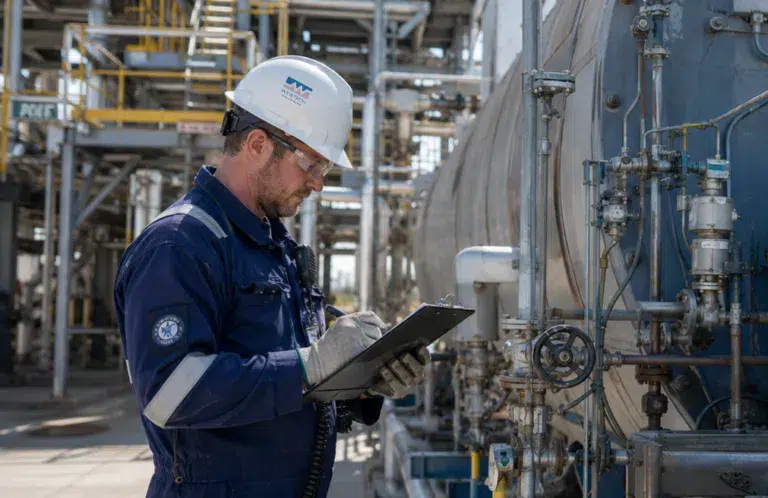

A boiler inspection or instrumentation walkdown is a good opportunity to look beyond individual components and consider whether the complete level-indication system is operating as intended.
Useful questions for operators and maintenance teams include:
- Do independent level indications agree during normal operation, startup and other appropriate operating conditions?
- After the prescribed blowdown or functional check, does the indicated level return promptly and behave as expected?
- Are connecting lines, isolation valves and drains being maintained according to the equipment manufacturer’s recommendations and facility procedures?
- Is the piping arrangement accessible for appropriate inspection and cleaning, and are there symptoms that warrant investigation for restriction or contamination?
- Have changes in boiler-water quality, operating conditions or maintenance history created a reason to review inspection frequency?
- When an indication behaves unexpectedly, is the entire installation being investigated—or only the instrument?
These questions are not a replacement for the applicable boiler code, OEM documentation, plant procedures or the requirements of the local authority having jurisdiction. They are simply a practical way of ensuring that the supporting infrastructure behind the measurement is not forgotten.
Reliable Boiler Level Indication Starts With the Whole System
Boiler instrumentation has become increasingly capable, but dependable level information still relies on some very basic fundamentals.
The instrument needs to be correctly applied. The valves need to function properly. The connecting piping needs to remain clear. Maintenance practices need to reflect actual operating conditions. And when independent indicators disagree, the difference needs to be understood rather than ignored.
Sometimes the most useful troubleshooting step is therefore not immediately replacing the device displaying the level.
It is looking at everything between that device and the boiler drum.
Review Your Boiler Level Instrumentation With Westech Industrial
Westech Industrial provides boiler inspections and on-site evaluations to help Canadian facilities review boiler and related systems, identify maintenance needs and evaluate opportunities to improve reliability and operation. Westech’s technical service capabilities also include preventative maintenance, troubleshooting, equipment evaluations and 24/7 support.
Through its work with Clark-Reliance boiler level instrumentation, Westech can also support facilities reviewing existing water-level indication equipment, replacement requirements or concerns identified during operation and inspection.
If your boiler level instruments are disagreeing, responding slowly, becoming increasingly difficult to maintain, or simply haven’t been reviewed as a complete system in some time, an inspection can provide a useful starting point.
Visit Westech Industrial at westech-ind.com to learn more about our boiler inspection, level instrumentation and technical service capabilities, or contact our team to discuss your application at [email protected] or call us today at 1-800-912-9262.
