🔌 Introduction
Industrial control panels—including VFDs, PLCs/HMIs, flare panels, and safety/alarm systems—are pivotal in Canada’s energy infrastructure. From compressor stations to biogas facilities, proper design, certification, and integration ensure operational efficiency, functionality and compliance. Here’s a guide to the top questions energy professionals ask, and how Westech Industrial can support your projects.
1. What Canadian standards must control panels meet?
Control panels in Canada must comply with:
- Canadian Electrical Code (CEC, CSA C22.1) for on-site installation
- CSA C22.2 No. 286 for industrial control panel design and assemblies
- CSA C22.2 No. 14 for approved IPC components
Optional field evaluations under SPE‑1000 may be needed for site-assembled equipment
2. What certifications are required for energy-sector panels?
Key certifications include:
- UL‑508A (USA and Canada)/ CSA‑C22.2 No. 286 panels, marked by accredited labs or certified panel shops under UL or CSA’s ICP Program for hazardous or non-hazardous locations
- CSA‑C22.2 No. 301 applies to industrial machinery up to 1,000 V
- Note: Compliance ensures trouble-free inspections and commissioning across provinces
3. What controls are needed in flare panels?
Essential functionalities include:
- Monitoring of pilot ignition and flame, gas pressure and flow, and visible emissions to meet regulations (e.g., 40 CFR 63.670 analogues).
- Automated alarm, shutdown, and emission reporting logic to satisfy safety protocols.

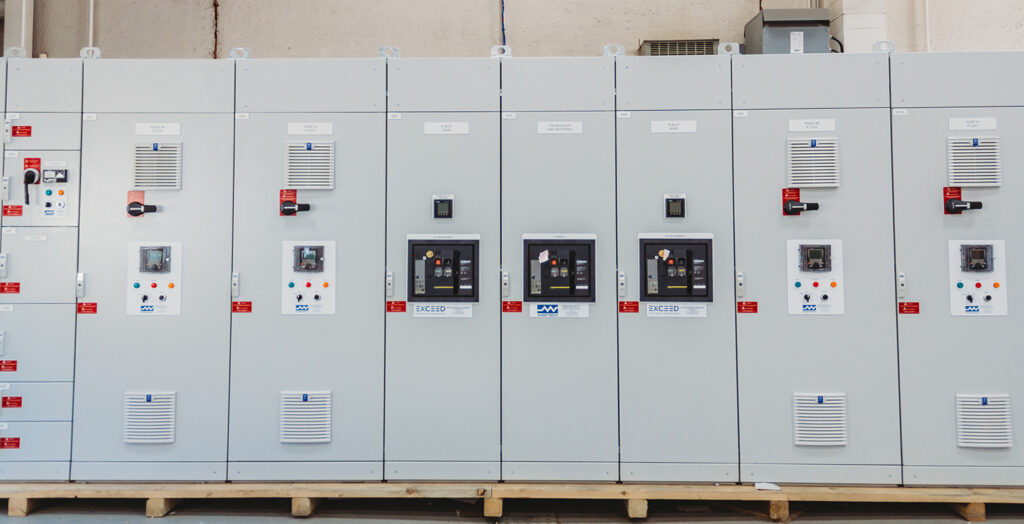

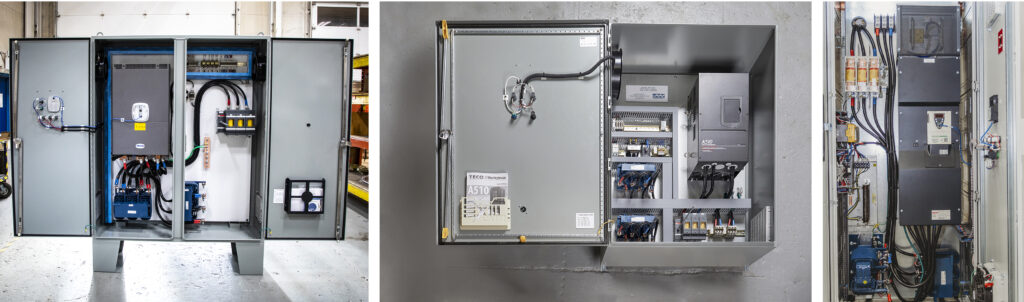

4. How are VFDs integrated into energy panels?
VFD control panels should include:
- Variable frequency Drive
- Safe disconnects, harmonic filters or reactors, heating, adequate ventilation
- Specialized controllers or integrated PLC/HMI for motor control, alarms, and diagnostics
- Note: Systems should be designed to be compliant with CEC and other CSA standards
5. How is safety monitoring and alarming handled?
Panels typically include:
- Safety relays or PLC-based safety logic (e.g., emergency-stop, overpressure alerts)
- Operational and hazard labeling and lockout-tagout instructions per CSA Z462
- Wiring diagrams, documentation, and field-tested alarm sequences
6. What maintenance is needed for control panels?
Best practices include:
- Routine inspections and cleaning to remove dust and debris, preserving ventilation and performance
- ARC-flash training, lockout-tagout procedures, and certified tools in compliance with CSA Z462
🔧 Why Choose Westech Industrial
For nearly 60 years, Westech Industrial Ltd. has designed and manufactured high-quality industrial control panel solutions across Canada and beyond. Our team of skilled technicians and engineers supports every step of the way—from fabrication and programming to start-up, commissioning, troubleshooting, and ongoing repair.
⚙️ What Makes Us Stand Out
- ISO 9001:2015 certified, we deliver competitive pricing and consistent, quality builds
- Our ETL-authorized panel shop constructs custom industrial control panels under UL 508A and CSA C22.2 #286 standards
- We engineer panels in a wide variety of NEMA enclosures—1, 2, 4, 4X, 12, 7, and 3R—available in both freestanding and wall-mounted designs
- We design internal heating and cooling systems to maintain optimal temperatures across diverse operating environments
- Our programming engineers are experienced with varied equipment manufacturers and programming languages
Applications We Support
| Panel Type | Use Case |
| VFD & Soft Starter Panels | Controls for ESP, PCP, and pump jack pumping systems—with POC integration, torque limitation, and harmonic reduction |

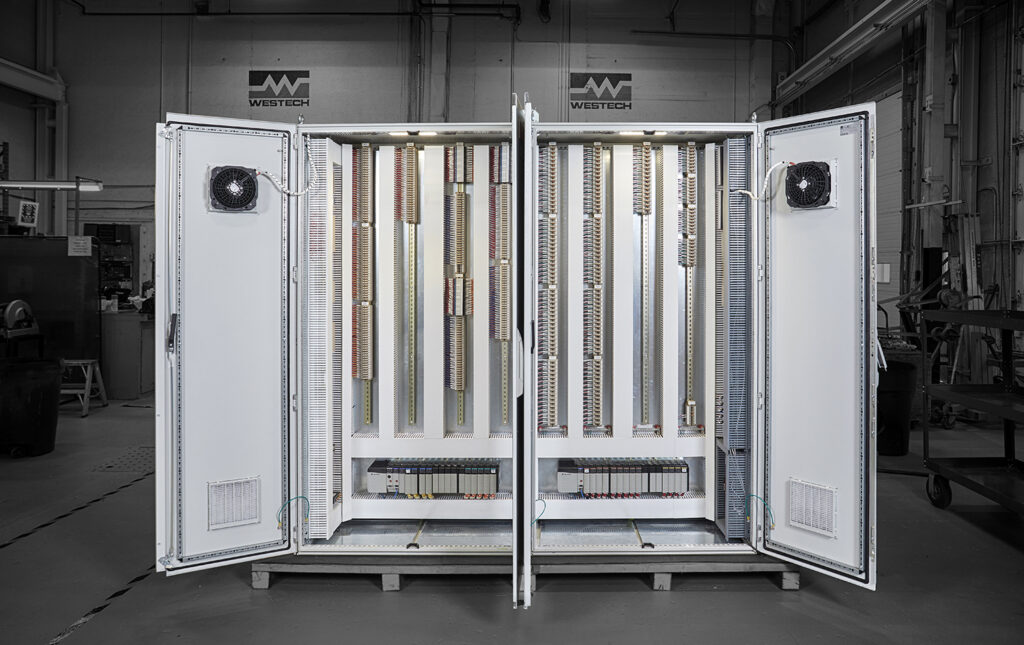

| PLC / HMI Systems | Automation panels with operator interfaces, trending, historian, alarms, process shut-downs, and remote communication |
| Flare Control Panels | CSA B149.3–compliant burner management systems for flare monitoring and local Authority Having Jurisdiction approval |
| Safety Monitoring & Alarming Panels | PLC-based gas detection, alarming, calibration, local sound/viz messages, and ISA TR84.00.07–based mapping for fire/gas systems |
 ✅ What You Gain
- Energy & Cost Efficiency: Optimized control systems reduce energy use, ease maintenance burdens, and extend equipment life.
- Regulatory Compliance: Panels are engineered to meet all applicable Canadian standards.
- Real-Time Control & Monitoring: Advanced PLC/HMI interfaces simplify operations, trends, and fault handling.
- Long-Term Support: We provide end-to-end services—from design and fabrication to commissioning and future maintenance.
Ready to optimize your operation?
Partner with Westech Industrial—your trusted expert in industrial control solutions for energy, process control, and instrumentation. Let’s talk about how you can enhance efficiency, compliance, and reliability with a custom, CSA/UL-certified panel.
đź“© Contact us today to get started on your control panel project at 1-800-912-9262 or visit our website at westech-ind.com.
