Boilers are essential to many operations across Canada’s energy sector, from oil and gas processing facilities to refineries, power generation, utilities, and industrial plants. When a boiler is operating properly, it is often treated as part of the background of the facility. But when water level indication is inaccurate, difficult to read, or improperly maintained, the consequences can be significant.
One of the most important tools for safe boiler operation is also one of the most basic: the sight glass, also known as a gauge glass. It gives operators a direct visual indication of the water level inside the boiler drum and helps support safe, informed decision-making during daily operation.
For Canadian energy operators, maintenance teams, and plant personnel, proper sight glass selection, installation, and inspection are not just good practices. They are part of a broader approach to boiler safety, reliability, and compliance.
Why Boiler Water Level Visibility Matters
The sight glass provides a direct reading of the boiler water level. This is important because water level control is one of the most critical aspects of boiler operation.
If the water level is too low, boiler tubes and other pressure-retaining components may be exposed to excessive heat. If the water level is too high, water can be carried over into the steam system, potentially affecting equipment performance and process stability.
A properly selected and maintained sight glass should allow operators to clearly see the full operating range, including visibility beyond high and low alarm points. This gives operators the ability to respond before a condition becomes more serious.
In practical terms, visibility is the first line of defence. If the operator cannot clearly see the level, the system is already introducing unnecessary risk.
Common Types of Boiler Gauge Glasses
Different boiler applications require different types of level indication. The correct selection depends on pressure, temperature, visibility requirements, installation layout, and the applicable codes or site standards.
Tubular Gauge Glasses
Tubular gauge glasses are simple and provide a direct visual indication of water level. They are typically used in lower-pressure applications and are often more exposed than other designs.
Armored Reflex Gauge Glasses
Reflex gauge glasses use prismatic glass to help distinguish the water level. Light reflects differently through the steam and water areas, making the interface easier to see in many applications.
Armored Transparent Gauge Glasses
Transparent gauge glasses use clear glass on both sides of the chamber, allowing operators to see through the water and steam space. These are often used where clearer visual confirmation is required.
Bi-Colour or Ported Gauge Glasses
Bi-colour gauge glasses use illumination to provide a clearer distinction between steam and water. These are often used in higher-pressure applications where visibility and accuracy are especially important.
The key takeaway is that there is no one-size-fits-all solution. The best choice depends on the boiler design, operating conditions, visibility needs, and the requirements of the facility.
Selection and Installation Details Matter
Even a high-quality gauge glass can create problems if it is not selected or installed correctly.

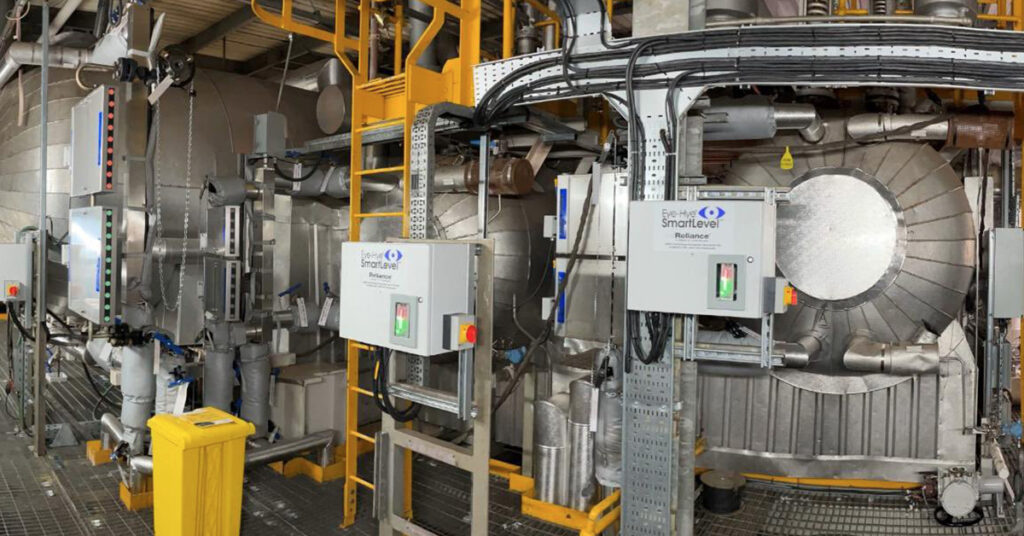

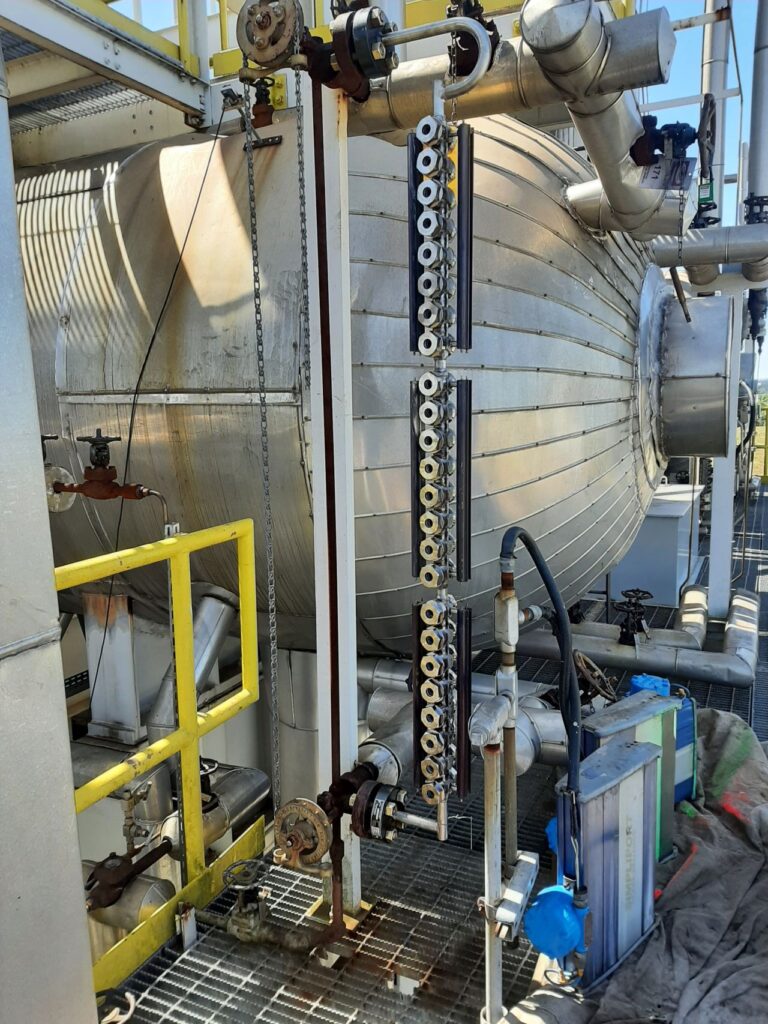

For example, when gauge glasses are installed in multiple sections, proper overlap between sections is important to avoid blind spots. Without adequate overlap, the water level may sit between sections, creating a misleading or incomplete reading.
Illumination is another important consideration. Ported gauge glasses require proper lighting to provide the intended level indication. Poor visibility can lead to operator uncertainty, especially in difficult lighting conditions or during high-demand operating periods.
The goal is simple: the operator should be able to see the water level clearly and confidently.

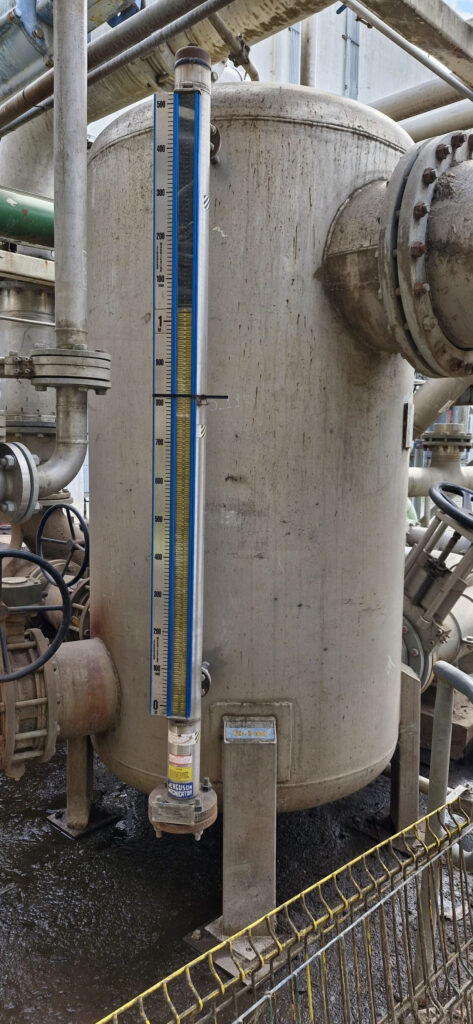

A Common Misapplication: Magnetic Level Indicators
Magnetic level indicators can be useful in many industrial applications, but they should not be treated as a direct replacement for a boiler gauge glass where direct-reading indication is required.
Boiler water level indication is a specialized application. Changes in density, operating conditions, float performance, and installation details can all affect how a magnetic level indicator performs. In some situations, magnetic level indicators may be used as supplemental indication, but they should not be assumed to replace the required direct-reading gauge glass.
This is one of the areas where a boiler level survey can be helpful. It allows a technical team to review what is installed, how it is being used, and whether the current configuration supports safe and compliant operation.
Maintenance Considerations for Boiler Sight Glasses
Routine inspection and maintenance are just as important as the original product selection. Over time, gauge glasses can become difficult to read due to staining, wear, clouding, leaks, gasket issues, or damage to the glass or protective components.
Operators and maintenance teams should watch for signs such as:
- Reduced visibility through the glass
- Leaks around the glass, valves, or fittings
- Damaged or worn glass surfaces
- Improper illumination
- Inconsistent readings between instruments
- Missing, unclear, or obstructed level indication
- Components that no longer match the boiler’s operating conditions
If a sight glass is difficult to read, it should not be ignored. Poor visibility can slow down response time and reduce operator confidence.
Free Boiler Surveys for Canadian Energy Facilities
Westech Industrial offers a complimentary boiler survey service to help facilities review their current boiler level indication and control devices.
This survey is designed to identify potential issues, review current equipment, and help maintenance and operations teams better understand whether their boiler indication setup is appropriate for the application.
A boiler survey may include reviewing:
- Existing sight glass and gauge glass installations
- Water column and level indication equipment
- Drum level indication and control devices
- Visibility and readability concerns
- Application fit based on pressure, temperature, and operating conditions
- Potential maintenance or replacement concerns
- Opportunities to improve reliability, safety, or ease of operation
The purpose is not to replace the knowledge of your operations team. It is to provide an additional technical review and help identify issues before they become larger operational concerns.
Supporting Safer Boiler Operation
Boiler safety depends on many factors, but clear and reliable water level indication remains one of the most important. Proper sight glass selection, correct installation, routine maintenance, and regular review of boiler level indication equipment can all help reduce risk and support reliable operation.
As a Canadian technical distributor and service provider, Westech Industrial works with boiler, instrumentation, and process facilities across the energy sector. Through our Clark-Reliance product line and in-house technical support, we help customers review boiler indication requirements, identify suitable solutions, and support ongoing maintenance needs.
Westech also provides 24/7 service support, helping facilities respond when equipment issues arise and keeping critical operations moving.
For more information, to schedule a complimentary boiler survey, or to speak with a Westech technical expert, visit westech-ind.com or contact Westech Industrial at 1-800-912-9262.
