Ironline Emission Reduction Services & Contract Compression Vs Industry Standard Compressor Rental

IRONLINE EMISSION SOLUTIONS

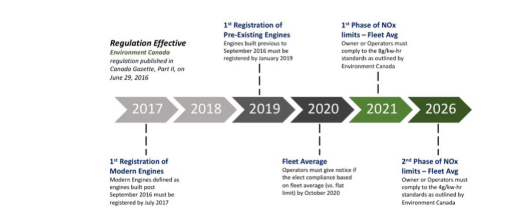

NOx Reduction Milestones

Ironline provides emission solutions for existing compression applications. Ironline Emissions solutions include:

Completing engine retrofits that reduce Green House Gas, making end users compliant and generating carbon credits
Fuel savings by upgrading natural gas engines into ultra efficient engines
As a Platinum packager for Waukesha Engine Ironline offers Waukesha Emission Reduction packages with the following benefits
The following models are available to upgrade (Starting Engine) with the corresponding fuel, CO2e and Nox savings per year

CONTACT THE IRONLINE SALES TEAM FOR EMISSION SOLUTIONS

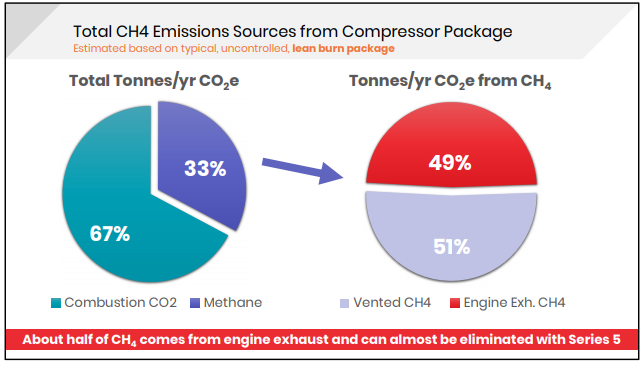

Approximately 1/3 of the CO2e emissions from a compressor package can be attributed to CH4. Of the CH4 emissions 51% comes from CH4 that’s being vented, while 49% comes through the exhaust from a lean burn engine. A simple conversion from Lean Burn to Rich Burn Series 5 technology will eliminate almost all of the Methane emissions from the engine exhaust.

IRONLINE BARE RENTAL (BR)

Customer Maintenance & Repair Responsibilities including all parts and labor for (and not limited to):

Site start‐up support will be charged based on standard hourly rates. Travel, mileage, and subsistence are extra, fluids extra;
Preventative maintenance;
Scheduled maintenance;
Un‐scheduled maintenance (Call‐outs based on hourly rates);
Overhauls (including painting) pro rata based on # of months that the unit is in customer’s possession (60 Month overhaul cycle, therefore 6 months is 10%;
Cleaning related to normal maintenance;
“Rental Return” repair or replacement of normal, non “Gas‐Wetted” and “Gas Wetted” wear components;

IRONLINE CONTRACT COMPRESSION (CC)

Ironline Contract Compression includes the following value add features above and beyond that of a typical bare rental.

Ironline Maintenance & Repair Responsibilities including all parts and labor for:

95% Mechanical Uptime Guarantee as per Ironline CC rental contract;
Site start‐up support, 2 men for 2 (10 hr) days. Travel, mileage, and subsistence included, fluids extra;
Preventative maintenance;
Scheduled maintenance;
Un‐scheduled maintenance (call‐outs);
Overhauls (including painting);
Cleaning related to normal maintenance;
“Rental Return” repair or replacement of normal, non “Gas‐Wetted” wear components as per Ironline CC rental contract.

GENERAL (APPLICABLE TO BR & CC)

Customer Responsibilities including all parts and labor for (and not limited to):

Loading, Transportation to and from Ironline Facility (unless otherwise quoted), Installation;
Maintenance and Overhaul of “Gas Wetted” compressor components;
Fluids (Oils and Coolant).
