Liquid in a sample conditioning system can damage analyzers and lead to inaccurate sample analysis; directly affecting the bottom line. Any one of Westech Industrial’s A+ Genie probes can be used for spot sampling, but only one has been designed specifically for Spot Sampling.

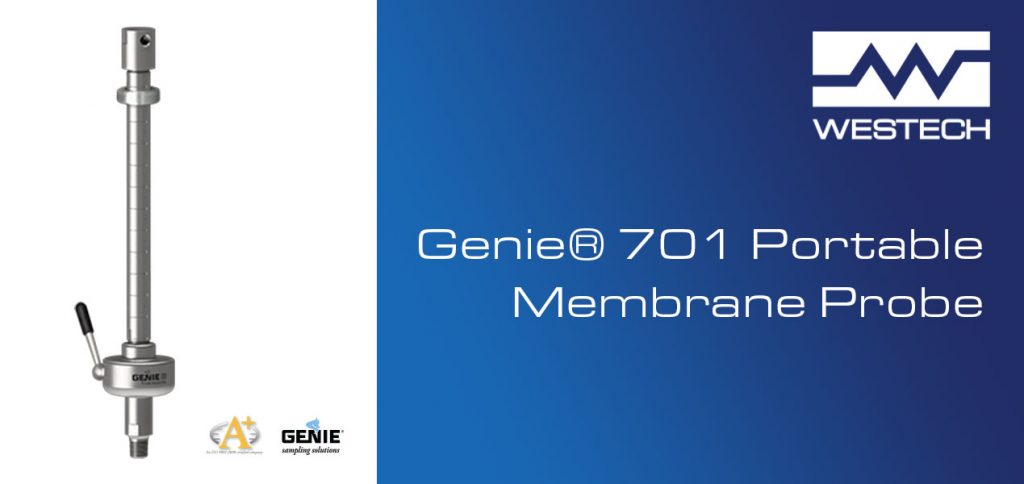

The Genie® 701 Portable Membrane Probe is designed to extract a liquid-free representative sample for spot sampling applications. It is compact, efficiently designed, simple to insert and retract, making it easy to bring from site to site. The exclusive Pressure Balance™ technique allows for effortless insertion of the probe without the need for additional tools or pneumatic and hydraulic methods. Inserting the probe is easily accomplished by simply turning the handle with fingertips. Although the 701 can be portable it can also be used in a permanent installation as part of a continuous or composite sample system.
Incorporating our A+ Corporation Genie® Membrane Technology™ at the tip of the probe allows for entrained liquids to be rejected inside of the flowing line at the prevailing temperature and pressure, assuring that no liquid contaminants reach the inside of the sample cylinder. This minimizes potential sample distortion caused by the effects of adsorption when the cylinder is heated at the lab for gas analysis. Also, using a membrane tip conforms to API 14.1 and GPA 2166 standards.
When using the Model 701 for spot sampling, the A+ flow restrictor and Spot Sampling Manifold are recommended. The flow restrictor prevents liquid from being forced through the membrane as a result of excessive flow while the Spot Sampling Manifold provides an easy means to connect the cylinder to the probe and purge the sample path from probe tip to cylinder inlet valve.
The Genie 701 Portable Sample System for Portable Analyzers is a simple, safe and quick solution to provide a representative vapor phase sample from a pressurized line. For more information on Westech Industrial A+ probe and filter product line please visit our website at https://bit.ly/33wlhfj or call us today at 1-800-912-9262.
