Multi-Z Cavitation Elimination Application


English Français 简体中文
These translations are done via Google Translate

multi z cavitation elimination application 1

Produced water is a term used in the oil industry to describe water that is produced when oil and gas are extracted from the ground. Oil and gas reservoirs have a natural water layer (formation water) that lies under the hydrocarbons. Oil reservoirs frequently contain large volumes of water, while gas reservoirs tend to have smaller quantities. To achieve maximum oil recovery additional water is often injected into the reservoirs to help force the oil to the surface. Both the formation water and the injected water are eventually produced along with the oil and therefore as the field becomes depleted the produced water content of the oil increases.

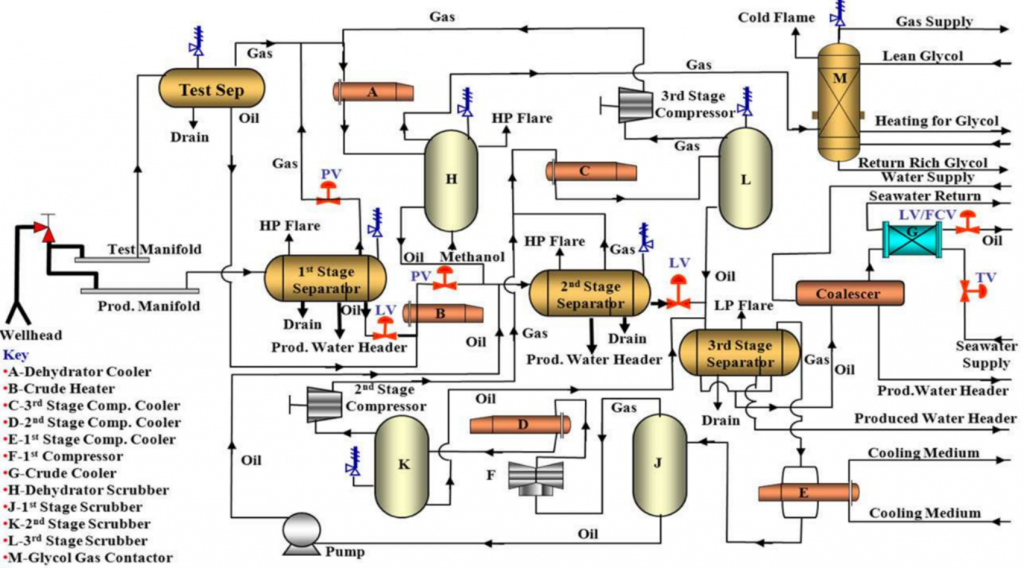

multi z cavitation elimination application 2

A standard globe control valve would not be successful in this application due to the produced water’s high sand and chloride content. The abrasiveness of the media would erode the plug and seat of the globe valve, causing the valve to fail. It would be a significant price increase to build the plug out of a high-strength alloy with excellent corrosion resistance to the high chloride content. The proper control valve for this application would have the ability to handle large pressure drops, high solids content, and corrosive environments.

The solution for this application would be the Flowserve Valtek Multi-Z globe control valve. The Multi-Z is specifically designed for severe service applications containing cavitation, noise, or dirty fluid (solids in media). The key feature of the Multi-Z for this application is its Notch style trim that allows high-pressure drop and velocities to occur away from the seat. This keeps the media in turbulent flow and the solids in suspension.

Key Benefits of the Multi-Z control valve include:

  • Eliminates cavitation
  • Reduces sound level
  • Able to handle solids in the process media
  • Extends valve life (protects the seat)
  • It does not require high strength alloys for erosive/corrosive environments (cost reduction)
  • Handles severe service applications without forgoing flow capacity

Flowserve Valtek® Multi-Z Literature

Who We Are.

N2X Process Solutions is a Canadian engineered supplier of market-leading Valve and Actuation Solutions to a wide range of process industries, such as energy, mining, power, and municipal.

We also design and manufacture specialty Surge Relief equipment, used on incompressible fluid pipelines, primarily in the midstream Oil and Gas Industry.

At N2X Process Solutions, we provide ourselves on being a responsible company for our community and for our clients. We are committed to providing exceptional customer service and ensuring the safety and reliability of our clients’ operations.

Click Here to find out more and Contact Us for further inquiries.
