By Kenny T. Farrow, PhD, PE, PEng and Ken Zhang, PhD, PEng

Recent increases in oil and natural gas production and consumption worldwide (e.g., Asia-Pacific, Middle East, and China) have contributed to the high demand for new construction and in-service uprates of pipeline systems. This increasing demand adds to the already existing need for pipeline expansion due to the shale gas development boom in North America.


Stress Engineering Services (SES) has responded to this demand by assisting operators across North America with detailed pipeline stress analysis for designing new lines and retrofitting existing lines. Typically, these analyses are performed only for previously identified critical sections of pipeline and are two-dimensional, i.e., neglecting elevation changes along the line. This leads to an analysis that is typically conservative. SES recommends three-dimensional stress analysis of the entire line because this approach more closely approximates the actual structural behavior throughout the pipeline. More importantly, three-dimensional stress analysis takes into account the additional flexibility of and interaction between horizontal and vertical bends, thereby eliminating unnecessary conservatism inherent in two-dimensional section models.

Three-dimensional analysis of cross-country pipeline


SES has extensive experience with performing pipeline stress analysis based on the particular code requirements (e.g., B31.3, B31.4, B31.8, CSA Z662, etc.) prescribed by the local regulating body. This experience includes assisting midstream companies with interpreting code and regulatory requirements to define project-specific acceptance criteria. Specifically, it is beneficial to perform comprehensive analyses that balance the requirements of codes, safe operations, construction efficiency, hazard mitigation, and cost. Below are a few examples of detailed assessments conducted by SES:

Pipelines are typically constructed using a combination of “roping” (grading the right of way to reduce the number of required factory and field bends) and “bending” (using field bends to accommodate undulations discovered along the right of way during construction). The benefits of roping include defining during the pre-installation phase the optimal pipeline profile to reduce global buckling risk, minimizing trenching cost, and enhancing construction efficiency. SES can perform roping analysis to determine pipeline vertical alignment.

Roping Analysis Stress Engineering

Roping analysis

  • Stress intensity factors (SIFs) and flexibility factors used in codes for elbows and tees are typically conservative. To reduce the level of conservatism, SES performs detailed finite element analysis (FEA) to more accurately estimate these factors.
  • SES has developed seamless modeling and analysis methods using in-line inspection (ILI) and inertial measurement unit (IMU) data to more accurately determine the fitness for service (FFS) of pipe defects by integrating global pipeline and local defect models.

Detailed local defect analysis (Level 3 fitness-for-service assessment) Stress Engineering

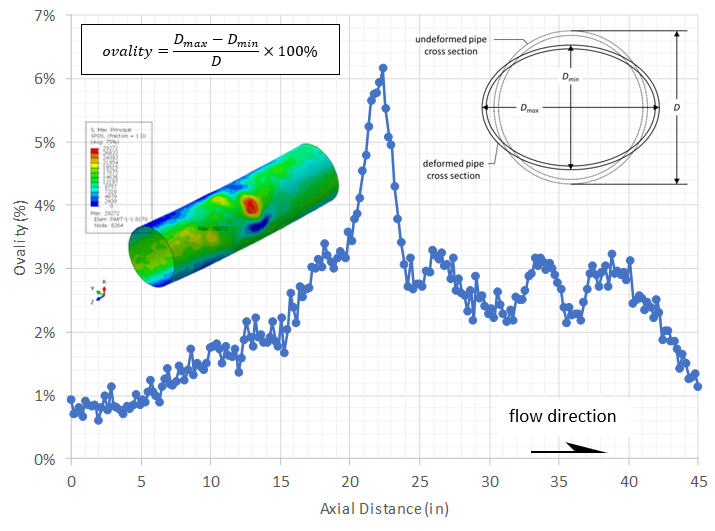

Detailed local defect analysis (Level 3 fitness-for-service assessment)

  • In addition to a typical stress-based design, SES can incorporate strain-based design, strain capacity determination, risk-based analysis, and analysis validation through field monitoring to provide a more rational and efficient design.
  • With the goal of streamlining the pipeline design or retrofit process, SES can provide a packaged solution of traditional pipeline code stress analysis and advanced analysis of pipe stress/strain demand due to geohazards (e.g., landslides, weak soils, subsidence, seismic, frost heave, etc.) and construction activities to ensure safe operation and ultimately reduce engineering cost.

Geohazard analysis of pipeline floating in muskeg Stress Engineering

Geohazard analysis of pipeline floating in muskeg

  • As part of this holistic design and analysis approach, SES has the capability to perform assessments of mainline, terminal and station piping, and the interface between the two systems.


A three-dimensional pipeline stress analysis is most beneficial when the actual soil properties along the line are closely modeled. This detailed modeling is particularly challenging because pipelines typically cover distances on the order of hundreds of miles. In addition, detailed geotechnical work (e.g., desktop analysis, bore-hole data, soil testing, field verification, probing, etc.)—while ideal for this analysis—is typically unavailable for the entire length of the line.

For cases where site-specific geotechnical data are unavailable, soil approximation along the pipeline route can be achieved by using publicly available soil survey data. In most cases, the databases contain information for subsurface soil as deep as 1.5 to 2.0 meters (3 to 6 ft), which is considered sufficient for stress analyses of cross-country pipelines. SES has developed a procedure that efficiently assigns soil properties for a pipeline stress analysis. Data processing is used to group the soil classifications based on various contents of clay, loam, and sand. This data processing incorporates statistical approximation and geographic information systems (GIS) tools. Future development of this soil terrain analysis will include incorporating our roping analysis to more accurately estimate soil properties according to pipe depth. An example of post-processed soil information for Wisconsin and Illinois is illustrated below. Soil properties are assigned for each soil classification, and these properties can then be extracted and incorporated into a pipeline stress analysis.

Soil classification along entire length of a pipeline Stress Engineering

Soil classification along entire length of a pipeline

After the soil properties are determined along the length of the pipeline, locations can be identified that are particularly sensitive to the assumed behavior of the soil. For these identified locations, advanced numerical modeling for local pipe/soil interaction can be performed to improve constitutive soil models. As shown in the figure below, a continuum soil model can be implemented to evaluate the local behavior at critical locations.

Continuum soil analysis to assess local response at critical location Stress Engineering

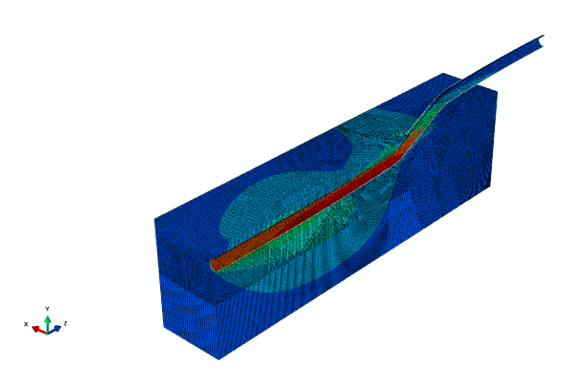

Continuum soil analysis to assess local response at critical location


Based on years of experience in stress analysis of pipelines, SES has developed methods to rapidly build full-length, cross-country pipeline models using supplied tally and/or ILI data, combined with soil property mapping based on the methodology discussed above. This approach can be used for commercially available software packages such as AutoPIPE (linear-elastic analysis) or Abaqus (linear-elastic and elastic-plastic analyses). For example, using Abaqus, the developed approach builds the input deck containing all of the information required to begin assigning specific boundary conditions, loads, etc. for a complete pipeline analysis.


The ability to rapidly build full-length pipeline models facilitates the analysis of other concerns related to design and fitness-for-purpose assessments. Examples of these other analyses (illustrated below) include:

  • Lowering in
  • Global buckling
  • Road, railroad, and water crossings

Lowering-in analysis

Global pipeline buckling analysis Stress Engineering

Global pipeline buckling analysis

Water crossing analysis Stress Engineering

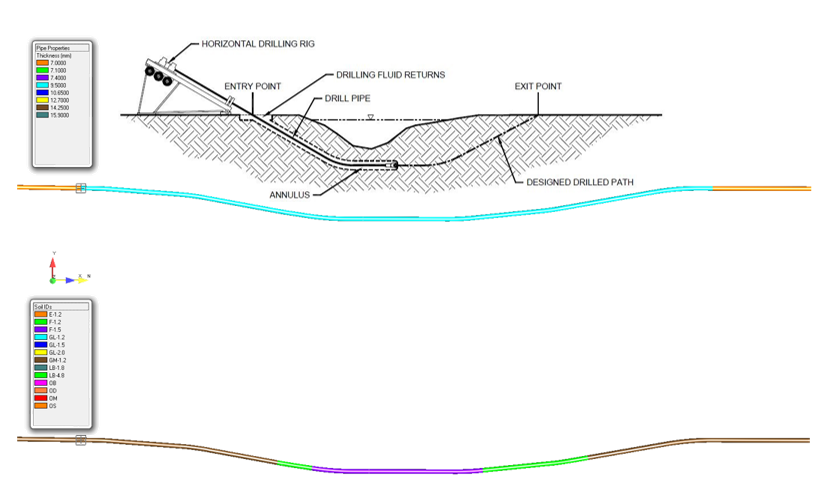

Water crossing analysis


Recent increases in oil and natural gas production and consumption have increased the demand for new construction and in-service uprating of pipeline systems. Based on our 25+ years of experience in subsea and onshore (aboveground and buried) pipelines, SES has developed a procedure to rapidly build, assess, and recommend cost-effective mitigation strategies for new and existing lines. In the design and fitness-for-purpose assessments of pipelines, SES believes that it is beneficial to consider full three-dimensional models to closely approximate the actual structural behavior of the pipeline and, more importantly, take into account the actual flexibility of and interaction between horizontal and vertical bends. These full-line models allow us to provide our clients a comprehensive solution that can seamlessly address more detailed analyses when needed, such as global buckling, geohazards, crossings, roping, and Level 3 fitness-for-service assessments.

For more information, please visit:


Kenny Farrow Stress EngineeringKenny Farrow, PhD, PE, PEng – Senior Engineer, Calgary Office

Kenny serves in the Upstream, Midstream, and Plant Services practices and has been with SES since 2004. His experience includes the conceptual design of riser fairings for vortex induced vibrations, defect fatigue life assessment for pipelines, and fitness-for-service assessments of pressurized equipment. He is a registered Professional Engineer in several states and provinces across North America.


Ken Zhang, PhD, PEng – Senior Engineer, Calgary Office

Ken’s background comprises fracture mechanics, metallurgical engineering, and pipeline design and analysis. He has extensive experience in stress- and strain-based design, geohazard assessment, and mitigation of pipelines, pipeline stations, and terminals. Ken is a registered Professional Engineer in the Province of Alberta and has authored multiple refereed journal articles in the fields of materials and physics.
