Enhancing Safety with Ultrasonic Gas Leak Detection: A Case Study

Introduction:

In the oil and gas industry, detecting and mitigating gas leaks is crucial to ensuring safety and operational efficiency. Traditional methods, such as catalytic bead and infrared point detectors, have been widely used but come with limitations. Ultrasonic gas leak detection offers a proven solution to enhance safety and reliability in detecting gas leaks.

Challenges in Gas Leak Detection:

Companies in the oil and gas sector face significant challenges when it comes to detecting gas leaks:

• Operational Safety: Defective seals, valve misalignment, or equipment failure can lead to dangerous gas leaks.
• Environmental Factors: Traditional detectors may be affected by adverse weather conditions and require the gas cloud to contact the sensor.
• Detection Limitations: Conventional methods can struggle with immediate detection and are influenced by wind direction and audible noise.
• Maintenance Costs: Frequent calibration and replacement of sensor elements can drive up operational costs.

Solution with Ultrasonic Gas Leak Detectors:

Ultrasonic gas leak detectors, such as Emerson’s Incus Ultrasonic Gas Leak Detector, address these challenges by leveraging advanced sensing technology. This innovative approach provides several benefits:

• Immediate Detection: Ultrasonic detectors identify gas leaks before hazardous concentrations are present, offering instant detection for all types of gas leaks.
• Environmental Resilience: They are not affected by weather conditions, wind direction, or noisy environments.
• Wide Coverage: A single unit can cover a wide area, up to a 196.85 ft. (60 m) diameter, ensuring extensive monitoring.
• Low Maintenance: With no moving parts and no need for regular calibration, these detectors offer long-term reliability and reduced maintenance costs.

Today’s Ultrasonic Leak Detectors:

Modern ultrasonic leak detectors use resonant sensors with piezo-electric materials embedded in ceramic, providing high chemical resistance and a wide frequency response range. Emerson’s Incus Ultrasonic Gas Leak Detector is equipped with four such sensors, each covering a maximum range of 131.2 ft. (40 m) radius. These detectors are factory calibrated for life, eliminating the need for zeroing or sensor element replacement.

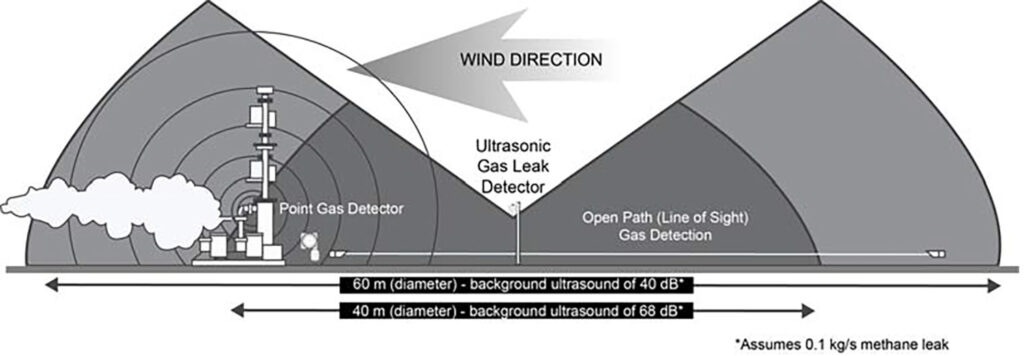

Figure 1-1. Diagram Showing the Coverage of Emerson’s Ultrasonic Gas Leak Detector

The Safety Systems Approach:

Integrating diverse detection technologies improves the likelihood of early detection of dangerous material releases and fires. A combination of ultrasonic leak detectors, gas monitors, and flame detectors offers comprehensive coverage across three defense levels: immediate leak stage, gas cloud formation stage, and ignition stage. This multi-layered approach helps prevent equipment damage, production downtime, personal injury, and even loss of life.

Figure 1-2. Pressurized Gas Release Episode: Detect-Distinguish-Defend

Conclusion:

The integration of ultrasonic gas leak detection significantly enhances safety and operational efficiency in hazardous environments. By combining various detection technologies, companies can ensure robust protection against gas leaks and related hazards. Emerson’s commitment to providing advanced detection technologies underscores its dedication to protecting life, property, and productivity.

For more information, contact Westech at 1-800-912-9262 and speak to our Technical Representatives to learn more about our range of safety solutions. Westech is the exclusive distributor for Emerson NetSafety/Rosemount products in Western Canada. You can also visit our website at  https://info.westech-ind.com/incus to learn more our Rosemount INCUS ultrasonic gas leak detector.
